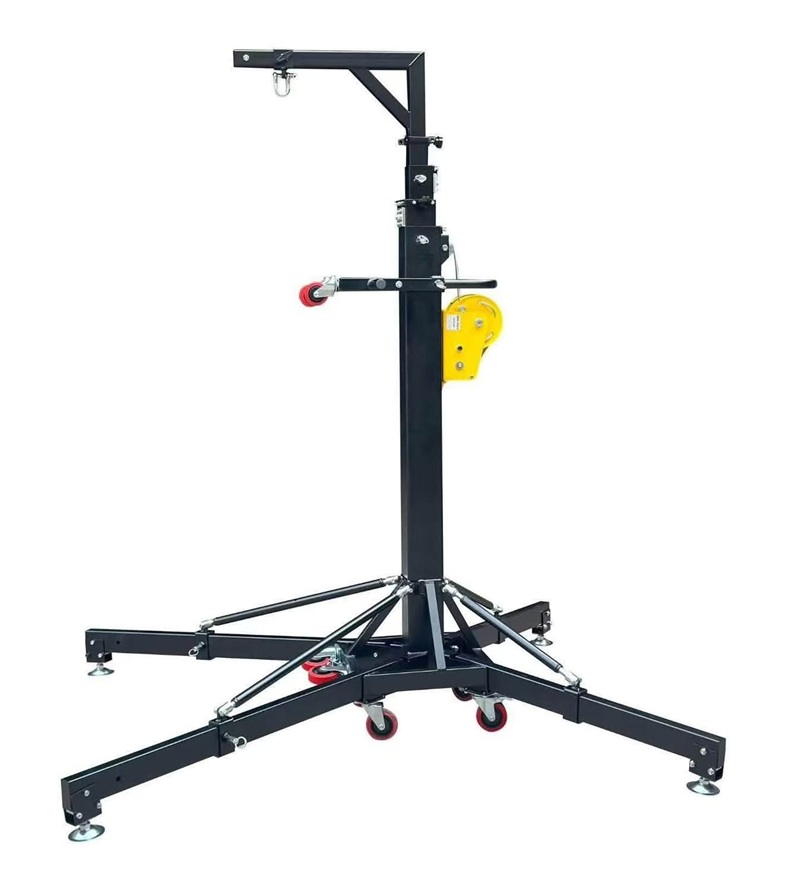

GT2004 – Professional T-Bar Stage Lighting Stand
- Status : New 100%, In stock
- Product code : GT2004
- Origin : China
- Tiêu chuẩn
Thông tin sản phẩm
GT2004 Professional T-Bar Stage Lighting Stand with a maximum height of ≥400 cm, vertical load capacity of 200–300 kg, heavy-duty steel construction, manual winch lifting system and caster wheels.
- Cam kết chính hãng 100%
- Bảo hành chính hãng
- Giao hàng toàn quốc
- Hỗ trợ kỹ thuật trọn đời

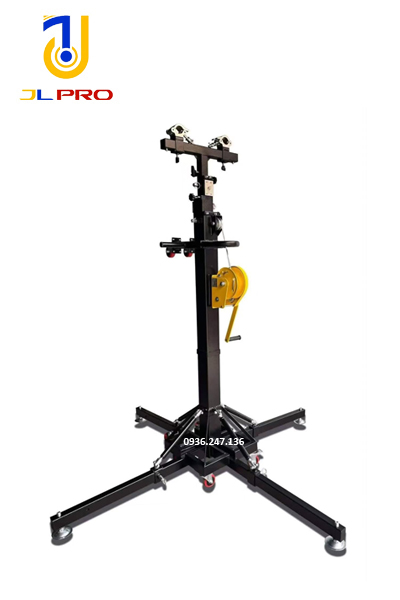

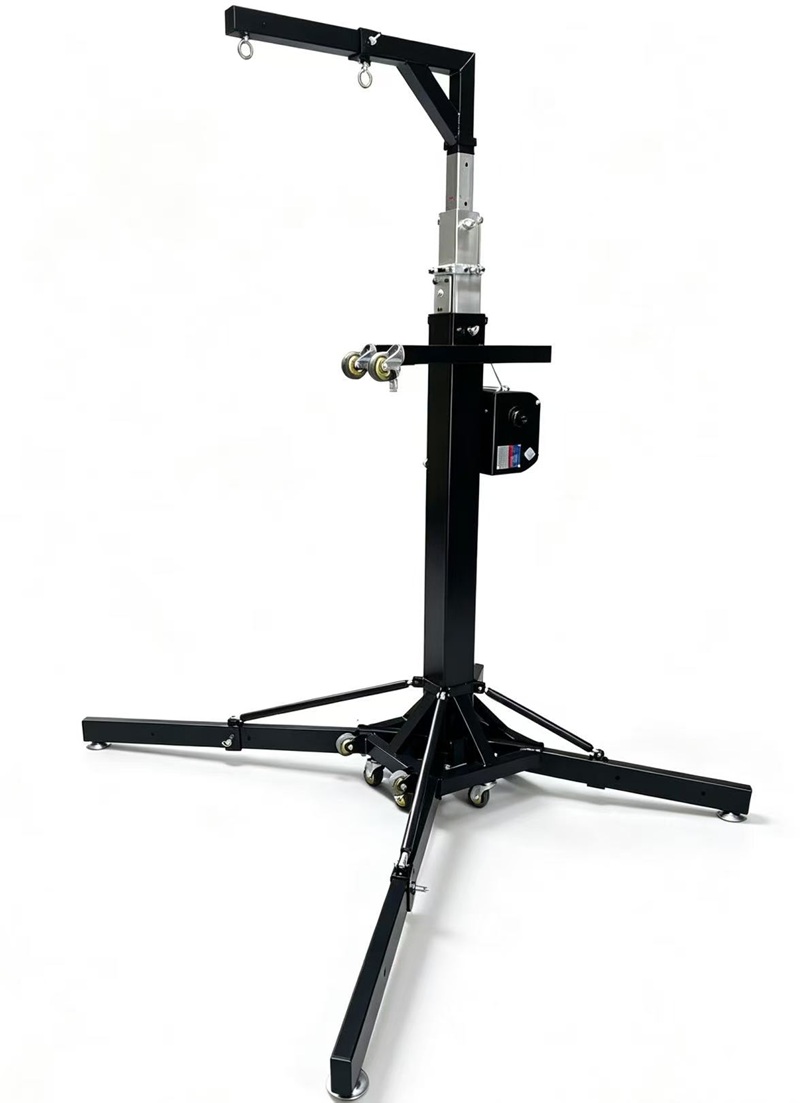

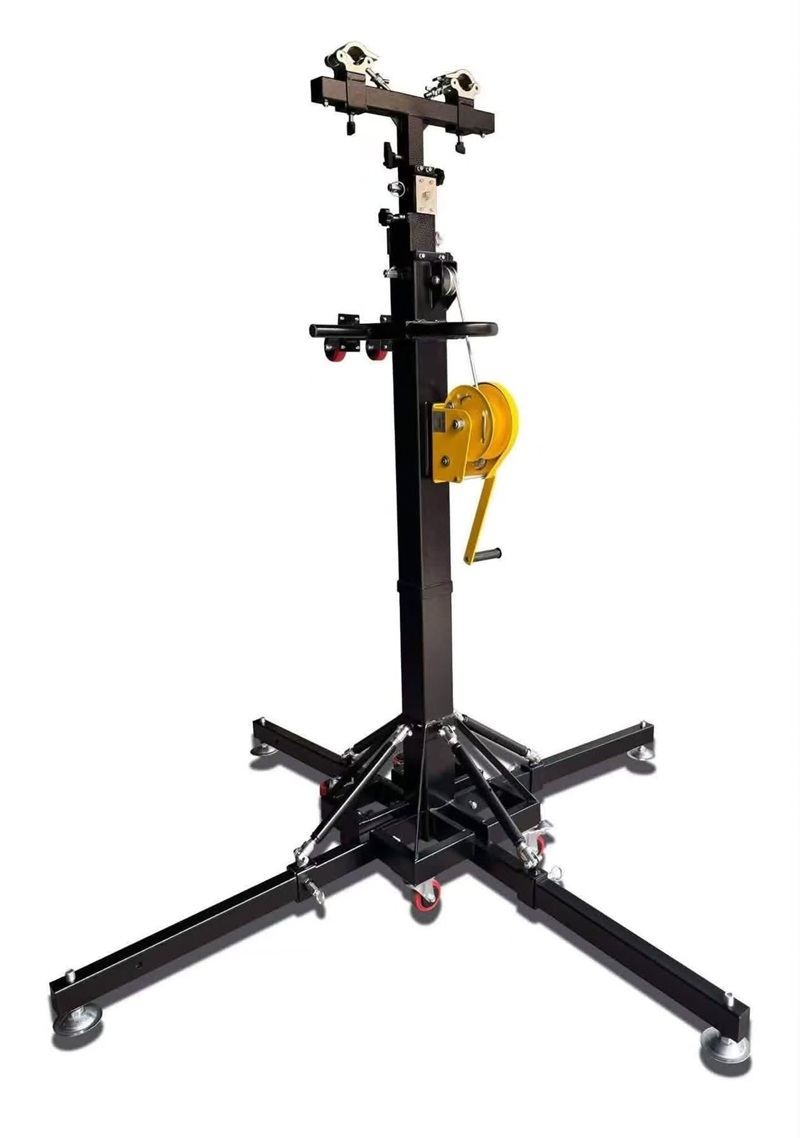

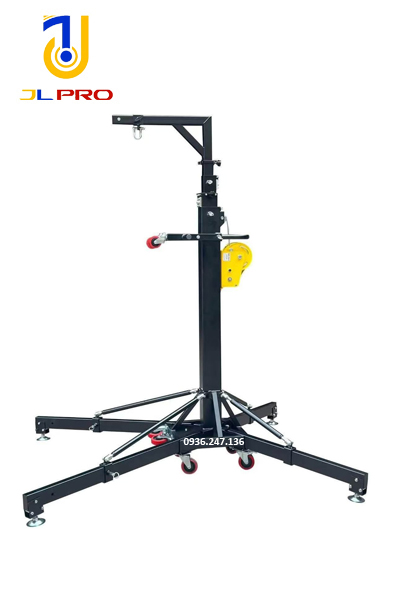

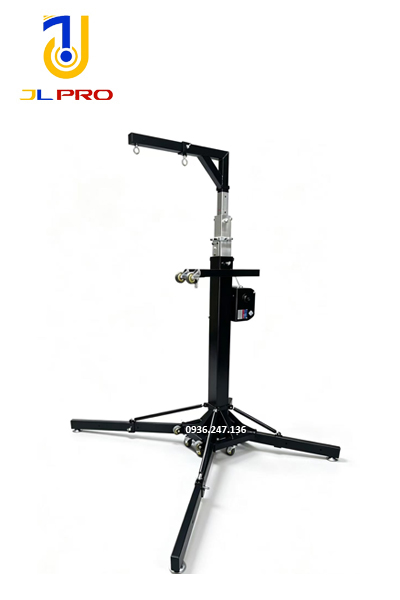

GT2004 Professional T-Bar Stage Lighting Stand
Product Overview
Professional Stage Lighting Stands, Lighting Towers, Professional Speaker Stands, Speaker Lifting Towers, and similar products are widely used in professional sound reinforcement and stage lighting systems.
The GT2004 can be customized from a standard design to meet specific application requirements and installation environments. Engineered with a robust and durable structure, it provides outstanding stability, high load-bearing capacity, and maximum operational safety, making it ideal for mobile and touring professional audio and lighting applications, as well as permanent installations.
Key Features
- Three-section telescopic mast design
- Maximum height of ≥ 400 cm
- Vertical load capacity of 200–300 kg per stand
- Horizontal T-Bar load capacity of 130–150 kg per stand
- Heavy-duty manual winch lifting system
- Four heavy-duty support legs for enhanced stability
- Heavy-duty casters for easy transportation
- Anti-corrosion two-component coating
- Suitable for professional stage lighting and touring applications
Technical Specifications
| Item | Specification |
|---|---|
| Model | GT2004 |
| Product Type | Professional T-Bar Stage Lighting Stand |
| Maximum Height | ≥ 400 cm |
| Collapsed Height | 170 cm ± 20 cm |
| Vertical Load Capacity | 200–300 kg per stand |
| Horizontal Load Capacity (T-Bar) | 130–150 kg per stand |
| Mast Design | Three-section telescopic design |
| Main Mast | 100 × 100 × 2.0 mm square steel tube |
| Middle Mast | 80 × 80 × 2.0 mm square steel tube |
| Top Mast | 60 × 60 × 2.0 mm square steel tube |
| Support Legs | Four heavy-duty support legs evenly distributed in four directions, with locking bolts |
| Support Leg Construction | 40 × 60 × 1.7 mm rectangular steel tubing |
| Overall Span | ≥ 2.20 m |
| Single Leg Length | 110–115 cm |
| Horizontal Lighting Bar | 50 × 50 × 1.7 mm square steel tubing |
| Winch System | Heavy-duty manual winch with Ø6 mm or Ø8 mm steel wire rope |
| Winch Capacity | 1,200–2,600 lbs |
| Mobility | Heavy-duty load-bearing casters |
| Material | Heavy-duty steel, iron, or alloy construction |
| Surface Finish | Two-component anti-corrosion coating |
| Lighting Support Arms | Two arms, ≥ 50 × 50 × 1.7 mm square steel tubing |
| Arm Extension | ≥ 70–100 cm on each side |
| Total T-Bar Length | ≥ 150–200 cm |
| Weight | Approximately ≥ 50 kg per stand |
| Finish | As shown in the attached illustration |
Applications
The GT2004 is suitable for:
- Professional stage lighting systems
- Concerts and live performances
- Events and exhibitions
- Mobile and touring applications
- Stage and entertainment venues
- Professional sound and lighting systems
- Permanent installation environments
 |
 |
 |

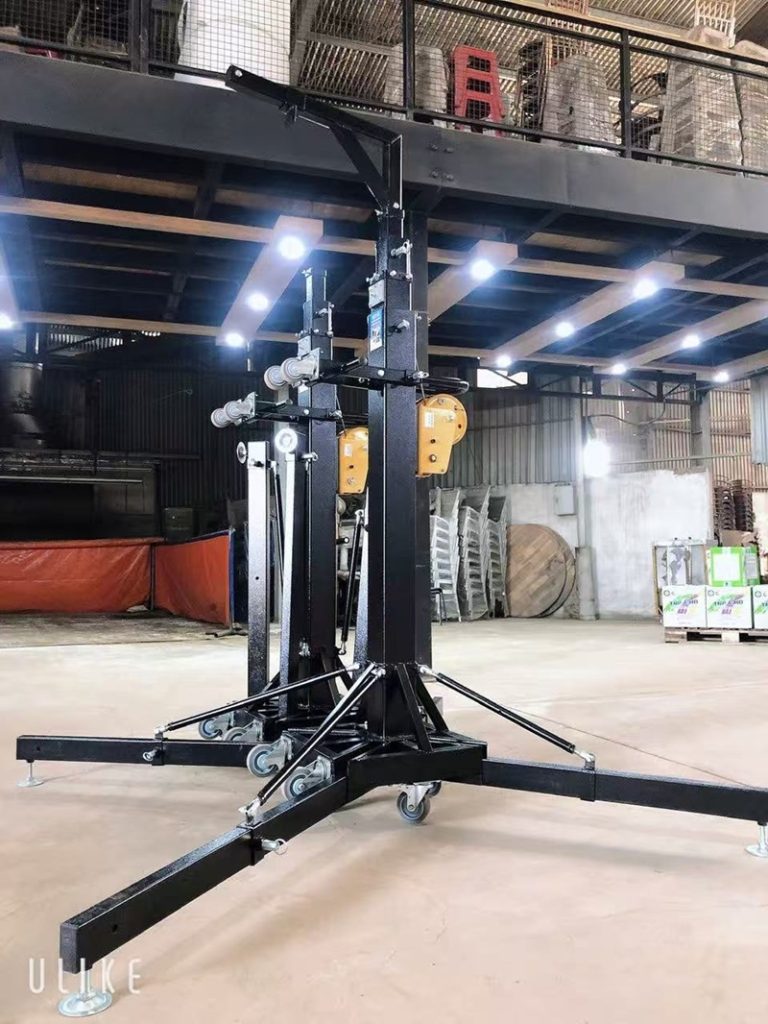

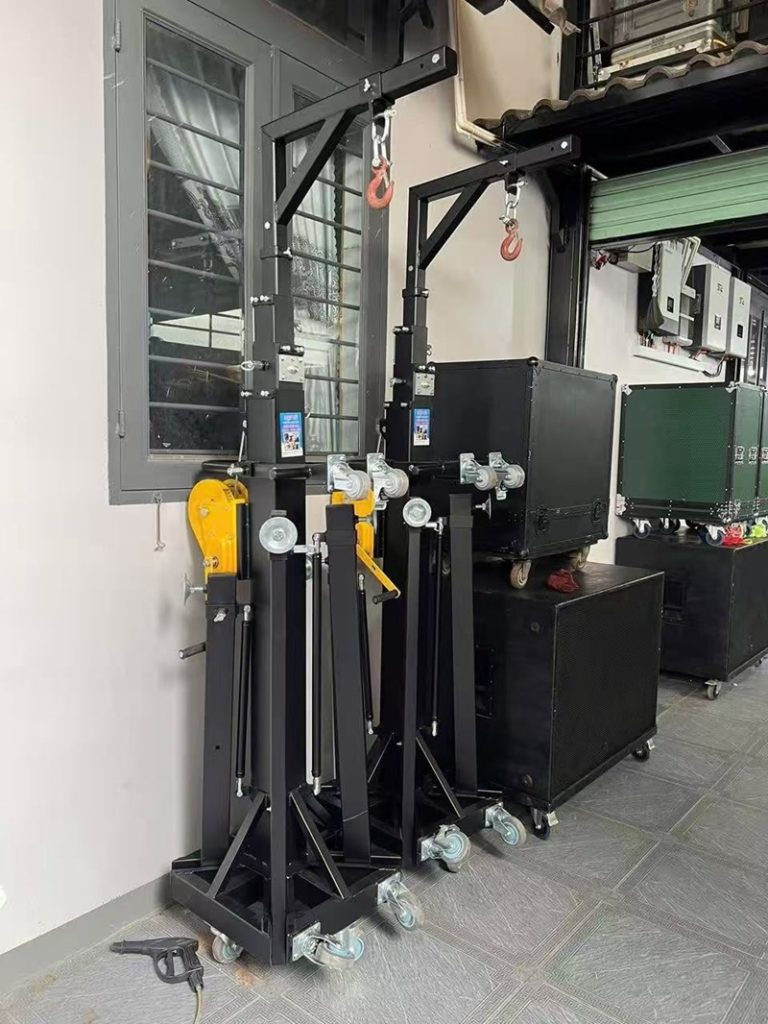

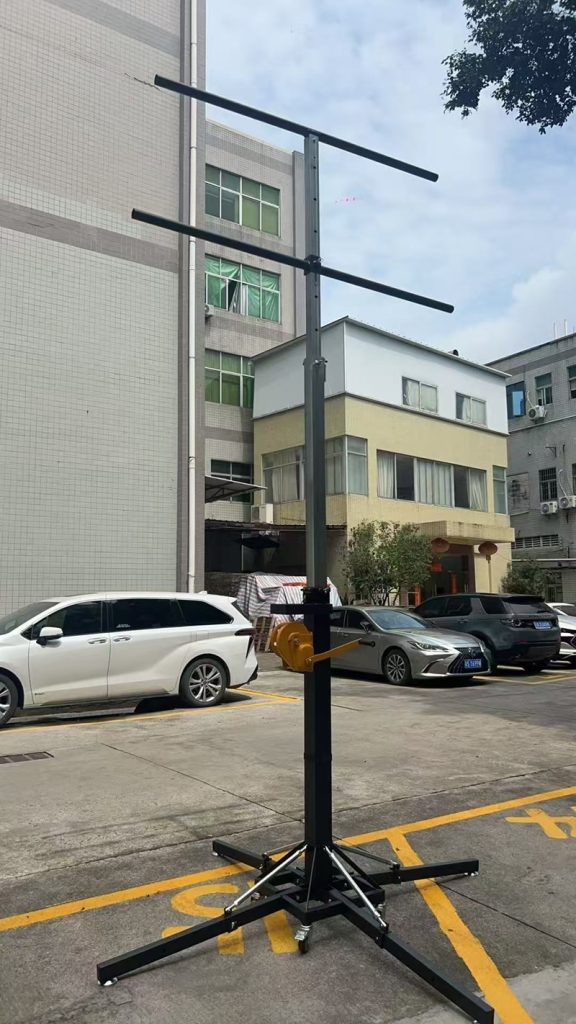

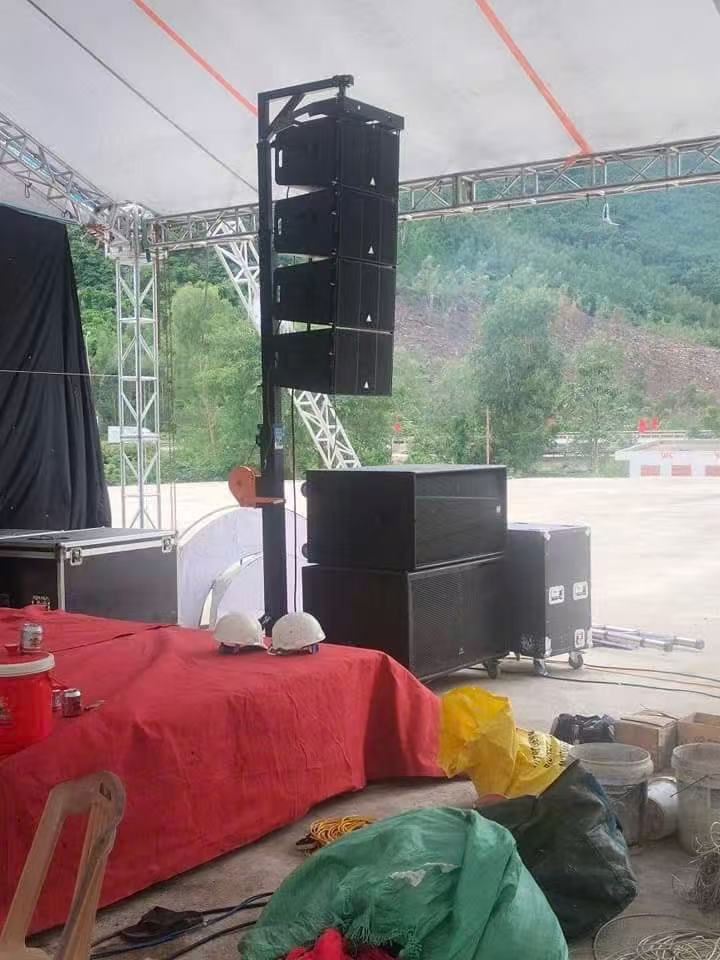

Some real-life images
Technical Drawing
Cross drawing / dimensional drawing of GT2004
 |
 |
 |
