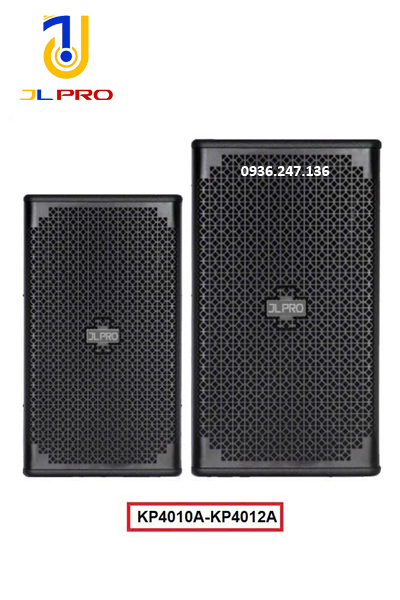

KP4012A – 12-Inch Active 2-Way Loudspeaker

Product Overview

The KP4012A is a professional 12-inch active 2-way bass reflex loudspeaker, designed to deliver powerful output, high sensitivity, and clear, balanced sound for demanding professional audio applications.

Equipped with a 12-inch ferrite LF driver featuring a 3-inch voice coil and a 1.7-inch ferrite HF compression driver, the KP4012A delivers a frequency response of 47 Hz – 18 kHz and a maximum SPL of up to 129 dB continuous / 135 dB peak.

With its 70° × 100° coverage, integrated amplifier module, adjustable LF/HF controls, and robust 15 mm plywood enclosure, the KP4012A provides excellent performance and installation flexibility for KTV, live performances, events, stages, and professional sound reinforcement systems.

KP-Series

Key Features

• Professional 12-inch active 2-way bass reflex loudspeaker
• 1 × 12-inch (312 mm) ferrite LF driver
• 3-inch (75 mm) LF voice coil
• 1 × 1.7-inch (44 mm) ferrite HF compression driver
• Frequency response: 47 Hz – 18 kHz (+3 dB)
• Sensitivity: 102 dB (+3 dB)
• Maximum SPL: 129 dB Continuous / 135 dB Peak
• Coverage angle: 70° × 100° (H × V)
• Rated power handling: 450 W Continuous / 1800 W Peak
• Integrated amplifier module
• Adjustable LF Bass: +12 dB
• Adjustable HF Treble: +12 dB
• 13 × M10 threaded suspension points
• 6 × dedicated KTV mounting points
• 2 × Neutrik Speakon NL4MP connectors
• Durable 15 mm plywood cabinet with wear-resistant black coating
• Suitable for KTV, live sound, events, stages, and professional sound reinforcement

Technical Specifications

Applications

The KP4012A is ideal for:

• KTV and karaoke systems
• Live performances and bands
• Professional events
• Stage and performance sound systems
• Mobile sound reinforcement
• Fixed installations
• Professional audio applications
